WhatsApp AI Automation for WooCommerce: Architecture, Webhooks, Idempotency, and AI Order Support

The Quick Answer

A reliable WooCommerce-to-WhatsApp system should not send messages directly from the WooCommerce webhook handler. Instead, use an event pipeline that verifies webhooks, stores events durably, prevents duplicate processing, checks the current order state, and sends WhatsApp messages through a separate job queue.

AI should sit inside controlled application boundaries. It can understand customer requests and choose approved tools, but application code should control whether an order can actually be changed.

This design also needs retry handling, human escalation, monitoring, and reconciliation so missed or stale events do not turn into incorrect customer messages.

The Problem Is Not Sending a WhatsApp Message

Assume a U.S. WooCommerce store processes 2,000 orders per day. A customer places an order at 10:01:14, WooCommerce emits an order event, and the store wants WhatsApp to send:

• Order confirmation
• Payment confirmation
• Shipping notification
• Delivery update
• Exception notification when fulfillment fails

The naive approach calls the WhatsApp API directly from the WooCommerce webhook handler. That may work in a demo. It becomes risky when the downstream API takes 4 seconds, the webhook request times out at 5 seconds, and WooCommerce retries an event that your application already processed.

You can then send the customer two identical messages for one order event.

There is another failure mode. The customer places an order, the first webhook is queued, and ten minutes later the order is canceled. If the queued job sends without checking the current state, WhatsApp could tell the customer that the order is processing even though it has already been canceled.

WooCommerce supports webhook delivery logs, signed webhook payloads, and automatic disabling after repeated delivery failures. A serious integration therefore needs to treat webhook handling as an event-processing problem, not just a notification feature.

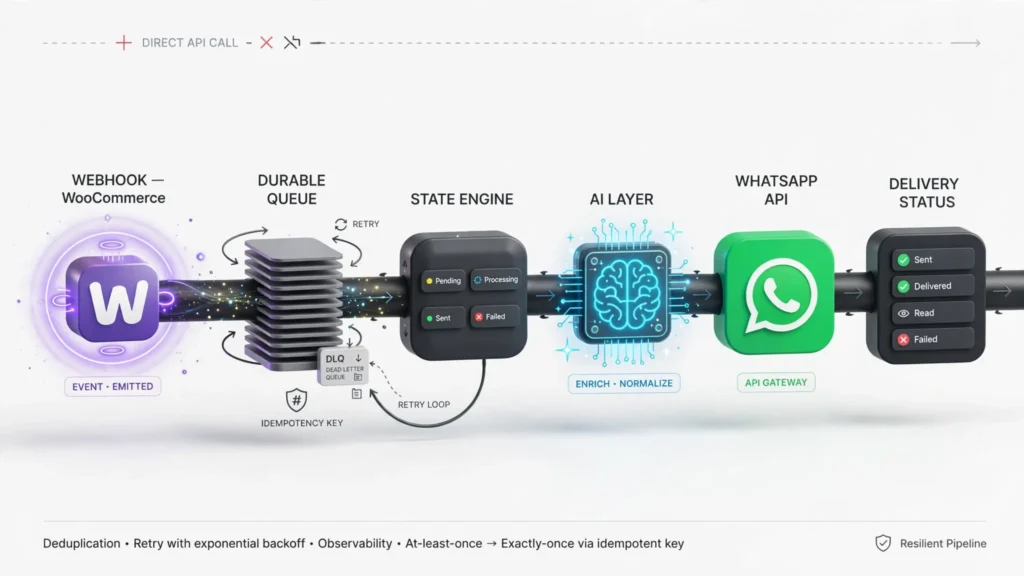

Use an Event Pipeline Instead of a Direct WooCommerce-to-WhatsApp Call

A safer design separates event ingestion from message delivery:

WooCommerce
    |
    | HTTPS webhook
    v
Webhook Ingress
    |
    | verify HMAC
    | validate schema
    | assign correlation ID
    v
Durable Event Store / Queue
    |
    +--------------------+
    |                    |
    v                    v
State & Policy       AI Decision Layer
Engine                  |
    |                    |
    +---------+----------+
              |
              v
       WhatsApp Job Queue
              |
              v
       WhatsApp Business API
              |
              v
       Message Status Webhook
              |
              v
       Delivery State Store

The key architectural decision is that the WooCommerce request should not wait for AI inference or WhatsApp delivery. The webhook endpoint should authenticate the event, persist enough information to process it safely, enqueue the work, and return a successful response.

WooCommerce documents an HMAC-SHA256 signature in X-WC-Webhook-Signature, along with X-WC-Webhook-ID and X-WC-Webhook-Delivery-ID. These values are useful for authentication, tracing, and deduplication.

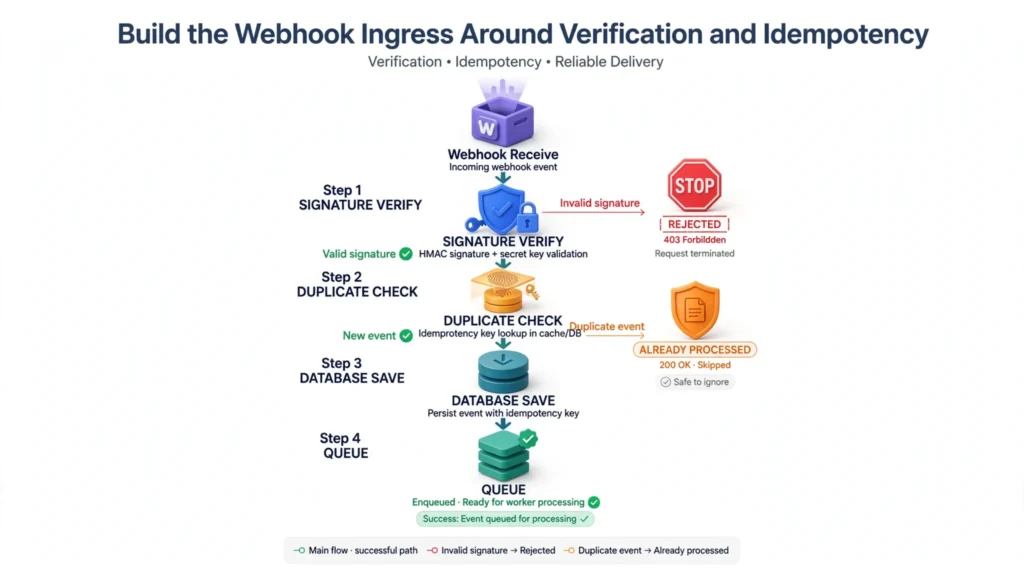

Build the Webhook Ingress Around Verification and Idempotency

1

Verify the WooCommerce Signature

Never accept an order event simply because it arrived at a public HTTPS endpoint. Validate the signature against the raw request body before parsing the payload for business processing.

const crypto = require("crypto");

function verifyWooSignature(rawBody, signature, secret) {
  const expected = crypto
    .createHmac("sha256", secret)
    .update(rawBody)
    .digest("base64");

  const supplied = Buffer.from(signature || "");
  const calculated = Buffer.from(expected);

  if (supplied.length !== calculated.length) {
    return false;
  }

  return crypto.timingSafeEqual(supplied, calculated);
}

Keep the webhook secret outside your application source code. Rotate it as part of your normal credential-management process, and never write it to request logs.

2

Make Duplicate Delivery Harmless

Webhook delivery is not the same as exactly-once business execution. Your handler must assume that the same event can arrive more than once.

A practical idempotency record can use the WooCommerce delivery ID as one component of its identity:

{
  "event_id": "wc:delivery:184392",
  "order_id": 84721,
  "event": "order.updated",
  "received_at": "2026-10-07T14:01:15Z",
  "status": "accepted",
  "correlation_id": "ord_84721_01J...",
  "processed_at": null
}

Before creating downstream work, atomically insert the event identifier into a table with a unique constraint. If the insert conflicts, acknowledge the webhook without executing the business action again.

CREATE TABLE webhook_events (
    event_id VARCHAR(255) PRIMARY KEY,
    order_id BIGINT NOT NULL,
    event_type VARCHAR(100) NOT NULL,
    correlation_id VARCHAR(255) NOT NULL,
    received_at TIMESTAMP NOT NULL,
    processed_at TIMESTAMP NULL,
    status VARCHAR(32) NOT NULL
);

Do not rely on an in-memory cache for this. A process restart can erase the deduplication state while the upstream system is still capable of retrying the event.

Prevent Stale WhatsApp Messages With Order-State Checks

Idempotency prevents the same event from being processed twice. It does not prevent an old event from being processed once after the order has changed.

Consider this sequence:

1. Order 84721 enters processing.
2. WooCommerce emits an event.
3. The event enters a queue.
4. The customer service team cancels the order.
5. The worker receives the original processing event.

The worker should fetch the current order state before sending the customer-facing message. Alternatively, include a state version or modified timestamp in the event and reject stale jobs.

async function processOrderNotification(job) {
  const order = await wooCommerce.getOrder(job.orderId);

  if (!order) {
    return markDeadLetter(job, "ORDER_NOT_FOUND");
  }

  if (order.status !== job.expectedStatus) {
    return markSkipped(job, "STALE_ORDER_STATE");
  }

  return sendWhatsAppNotification(order);
}

This check matters particularly for cancellations, refunds, failed payments, address changes, and fulfillment exceptions.

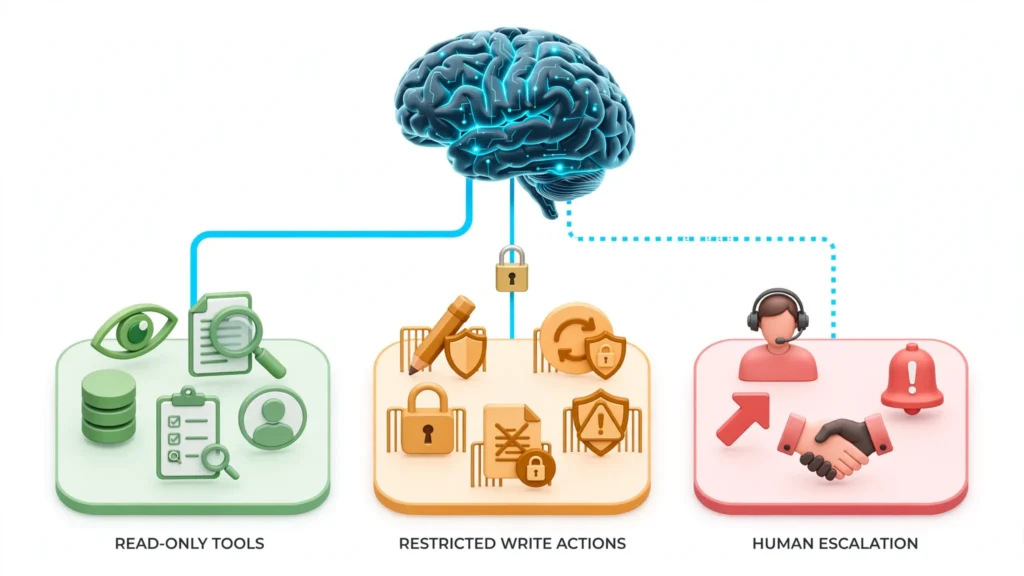

Separate Deterministic Commerce Actions From AI Reasoning

AI is useful when a customer says: Where is my order and can I change the delivery address?

It is not a good idea to give the model unrestricted access to the WooCommerce REST API. The model should decide which approved tool is appropriate; application code should decide whether that tool is authorized to modify the order.

Recommended Tool Boundaries

A cancellation tool should not simply execute because the model selected it. The application should validate conditions such as payment status, fulfillment state, fraud controls, and authorization before changing the order.

async function requestCancellation(orderId, customerId) {
  const order = await getOrder(orderId);

  if (order.customer_id !== customerId) {
    throw new Error("ORDER_OWNERSHIP_FAILED");
  }

  if (!["pending", "processing"].includes(order.status)) {
    throw new Error("ORDER_NOT_CANCELLABLE");
  }

  return createCancellationRequest({
    orderId,
    customerId
  });
}

The AI can explain the result. It should not be the source of truth for whether the order actually changed.

Design Around WhatsApp’s Messaging Constraints

WhatsApp automation has an application-state dimension that basic WooCommerce integration guides tend to omit.

A customer-initiated interaction opens a customer-service window. Within that window, the business can use permitted free-form responses. Outside the window, the application needs an approved template for business-initiated messaging. Current WhatsApp pricing and messaging rules also need to be checked before forecasting automation costs because Meta’s commercial rules have changed since the older conversation-based pricing model.

This means your message worker should not blindly execute:

sendText(customer, "Your order has shipped.");

Instead, make message eligibility part of the workflow:

async function chooseMessage(order, customer) {
  const windowOpen = await isCustomerServiceWindowOpen(customer.id);

  if (windowOpen) {
    return {
      type: "free_form",
      body: renderShippingMessage(order)
    };
  }

  return {
    type: "template",
    name: "order_shipped",
    parameters: {
      order_number: order.number,
      tracking_number: order.tracking_number
    }
  };
}

Do not hard-code assumptions about WhatsApp pricing or policy into the core order system. Keep the policy layer configurable because Meta changes eligibility, pricing, and messaging requirements over time.

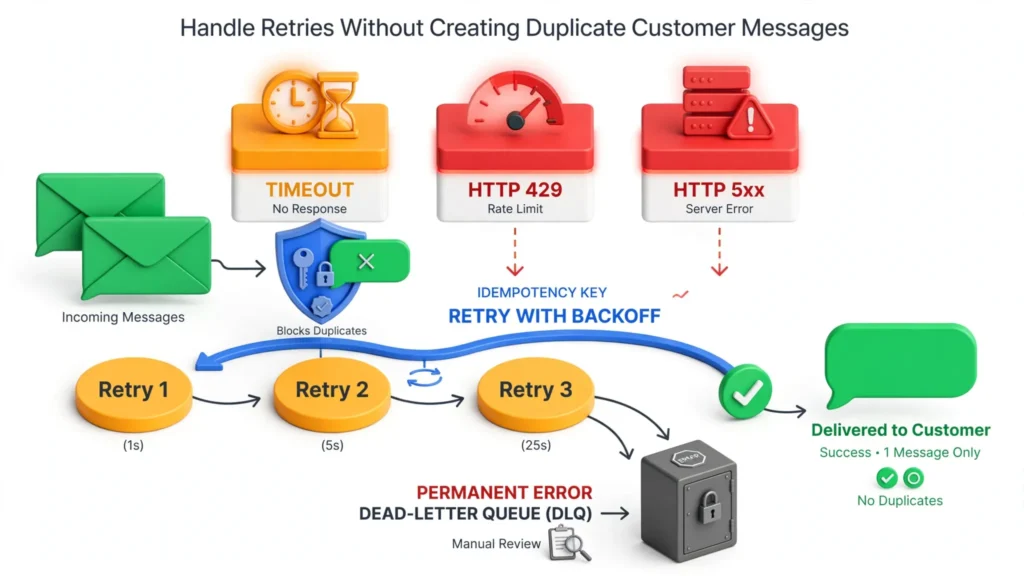

Handle Retries Without Creating Duplicate Customer Messages

There are two different things to retry: an infrastructure operation and a customer-facing message.

If a WhatsApp API request times out, you may not know whether the provider received it. A naive retry can therefore produce a duplicate message.

The worker needs a durable outbound-message record:

{
  "message_key": "order:84721:shipping:v3",
  "order_id": 84721,
  "channel": "whatsapp",
  "template": "order_shipped",
  "state": "sending",
  "attempts": 1,
  "provider_message_id": null,
  "last_error": null
}

Use a deterministic message key for business uniqueness. For example, an order should normally have one logical shipping notification for a particular shipment version, not one notification for every retry.

Use Bounded Exponential Backoff

function retryDelay(attempt) {
  const base = 1000;
  const cap = 60000;

  const exponential = Math.min(cap, base * (2 ** attempt));
  const jitter = Math.floor(Math.random() * 500);

  return exponential + jitter;
}

A reasonable initial policy is five attempts over several minutes for transient failures, followed by a dead-letter state. Do not retry authentication failures, invalid recipients, permanently rejected templates, or invalid business rules as though they were network failures.

Build Human Escalation Into the State Machine

The AI should stop when the risk of acting exceeds the value of automation.

Examples include:

A handoff should transfer context rather than simply create a ticket saying customer needs help.

{
  "reason": "ADDRESS_CHANGE_AFTER_FULFILLMENT",
  "customer_id": "cus_48192",
  "order_id": 84721,
  "summary": "Customer requested delivery-address change after carrier pickup.",
  "verified": true,
  "last_order_status": "completed",
  "recommended_team": "fulfillment",
  "conversation_id": "wa_98271"
}

The human should receive the relevant order state, verification result, customer request, AI actions already attempted, and the reason for escalation.

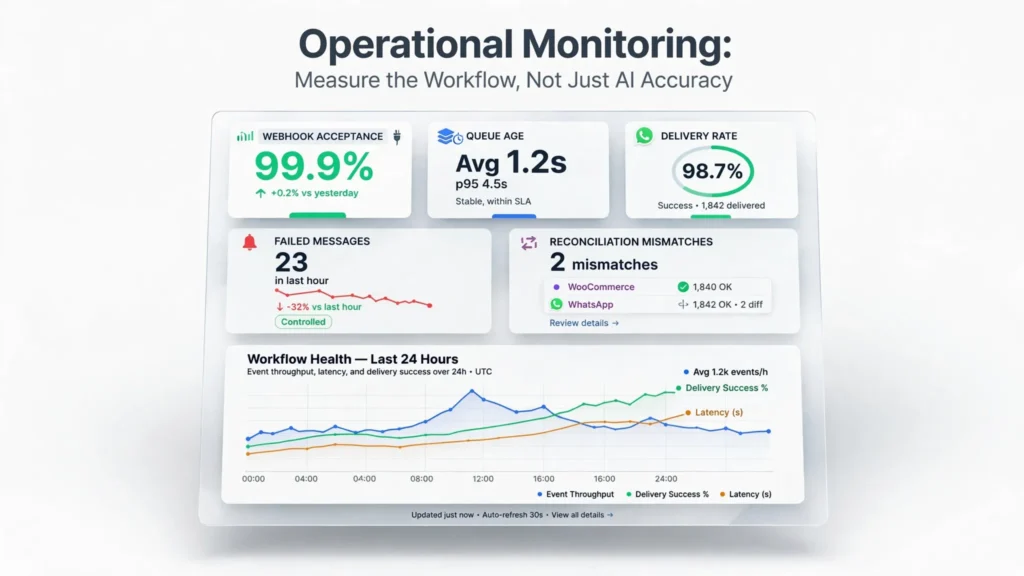

Operational Monitoring: Measure the Workflow, Not Just AI Accuracy

An AI automation can produce fluent answers while the commerce integration is failing. Track the entire path.

For a store processing 2,000 orders per day, a 99.5% notification success rate still means approximately 10 orders per day can fail to receive the intended notification. That is why the reconciliation job matters.

Run Reconciliation Independently of the Webhook Pipeline

Once or twice per day, compare the WooCommerce order state against the outbound notification ledger. If an order is marked as shipped in WooCommerce but has no successful shipping notification, create a repair job.

SELECT o.id
FROM orders o
LEFT JOIN outbound_messages m
  ON m.order_id = o.id
 AND m.message_type = 'shipping'
 AND m.state IN ('sent', 'delivered', 'read')
WHERE o.status = 'completed'
  AND o.shipped_at IS NOT NULL
  AND m.id IS NULL
  AND o.shipped_at > NOW() - INTERVAL '48 hours';

This is fundamentally different from assuming the webhook system is infallible. The reconciliation process gives the architecture a second path to detect missed work.

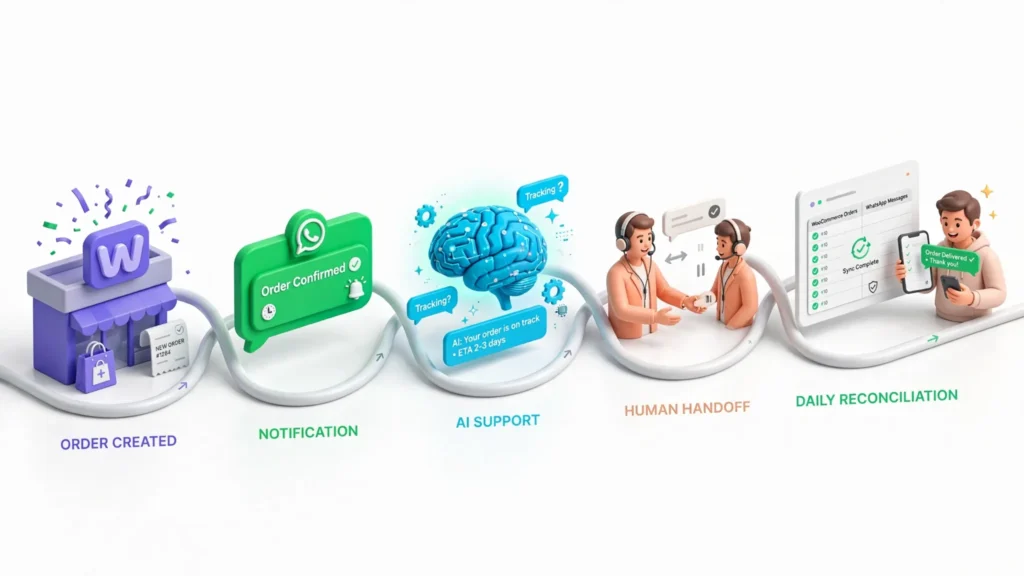

A Practical WooCommerce + WhatsApp AI Workflow

For a typical U.S. retailer, a useful first implementation can stay narrow:

Start with read-only support and deterministic notifications before allowing AI to modify orders. This keeps the initial failure domain small while giving the team real conversation data for deciding which actions are safe to automate.

What to Automate First and What to Leave Human-Controlled

Validation Checklist Before Sending the First Live Message

• Webhook signature validation is tested with both valid and invalid payloads.
• Duplicate webhook deliveries do not create duplicate outbound messages.
• A delayed event cannot overwrite newer order state.
• WooCommerce webhook failure behavior is monitored.
• WhatsApp credentials are stored outside source control.
• Message templates have an owner and versioning process.
• The application distinguishes transient and permanent API errors.
• Every outbound message has a deterministic business key.
• AI tools have explicit read/write permissions.
• High-risk actions have application-level authorization.
• Human handoff contains order, customer, and conversation context.
• Dead-letter jobs can be inspected and replayed.
• A reconciliation process can find missed notifications.
• Metrics cover webhook ingestion through message delivery.

Bottom Line

WhatsApp AI automation for WooCommerce should not be designed as a chatbot attached to a store. It is an event-driven commerce workflow with a conversational interface.

WooCommerce owns order truth. The event pipeline owns reliable processing. The policy layer decides what is permitted. AI handles language and intent within those boundaries. WhatsApp handles customer communication. A reconciliation system catches what the event path missed.

That separation prevents a temporary API failure from becoming a customer-facing contradiction and gives engineering teams a system they can debug when traffic, integrations, and customer behavior stop following the happy path.
